Temperature Control Valves

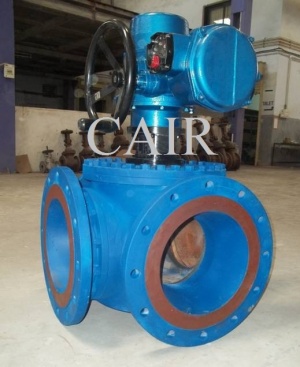

Actuated Temperature Control Valves


Overview

CAIR Model-CW, 3-way temperature control valves provide a high degree of accuracy and repeatability for accurate temperature control and are also used in mixing or diverting service over a wide flow range.



Features and Benefits



  • ·  Easy to integrate - valve size matches pipe size
  • ·  Flexible design - ports can be configurd to suite installation
  • ·  Simplified set up and maintenance - hand wheel allows manual adjustment of valve (optional on pneumatic valve)





Applications

For engines, turbines, gearboxes and heat exchangers:



  • ·  Charge air cooling
  • ·  Secondary cooling systems
  • ·  Fuel and lube oil preheating
  • ·  Co-generation
  • ·  Engine jacket water





For refineries, chemical plants and oil reporduction:



  • · Waste heat boilers
  • · Product coolers
  • · Product heaters
  • · Product condensers



Specifications

Flow to:

3000m3/hr

(13,200 us gpm)

Sizes:

50mm to 400 mm

(2" to 16")

Rotor material:

Bronze or stainless steel

Rotor shaft:

Stainless steel

Shaft seal material:

Viton rubber (GEF)

Nitrile or Viton (GPD)



Temperature Control Valves
Temperature Control Valves actuators
محصولات 1
۲۰۰ تومان


MOTORIZED ACTUATOR VALVES
"Cair" Manufactures On – Off Duty 415V AC Three Phase Quarter Turn Electrical Actuator Operated 2 way Ball Valve
محصولات 1
۱۵۰ تومان
